Why you need a Heat Loss home Inspection Survey
Does your home cool down when you turn Off the central heating system? Our heat loss home inspection…
- Finds source of Drafts which results in severe heat loss.
- Finds missing or defective Insulation which results in severe heat loss.
- Finds source of Condensation that leads to serious structural damage.
- Finds source of fungi that leads to mould growth & serious health problems.
From €400 + vat.
Contact Us
Locates where Heat is lost from buildings
- Improving insulation is more cost effective than upgrading heating systems.
- Reducing drafts is the cheapest way to ensure a warm home.
- Reducing drafts is more cost effective than upgrading building insulation and heating systems.
- Reducing drafts is better than increasing fuel usage to maintain a comfortable environment
- Improving insulation an elimination of drafts also means occupants can reduce heating by a few degrees and still maintain comfort levels.
From €400 + vat.
Contact Us
What does a Thermal Imaging Inspection involve?
’A picture says a thousand words’
Gaps and cracks are to difficult to detect simply by hand or visual inspection.
Once located drafts can often be simple and inexpensive to seal 10 to 70% Savings
We use a Thermal Imaging Camera to locate where heat is lost from buildings
Home Inspection takes only a few hours on winter’s morning
HEAT LOSS DETECTION GALLERIES
Drafts, Condensation, Mould & Ventilation Issues
Drafts coming through room vent from outside
Drafts coming through room vent from outside
Thermal Image of drafts coming through room vent from outside
Thermal Image of drafts coming through room vent from outside

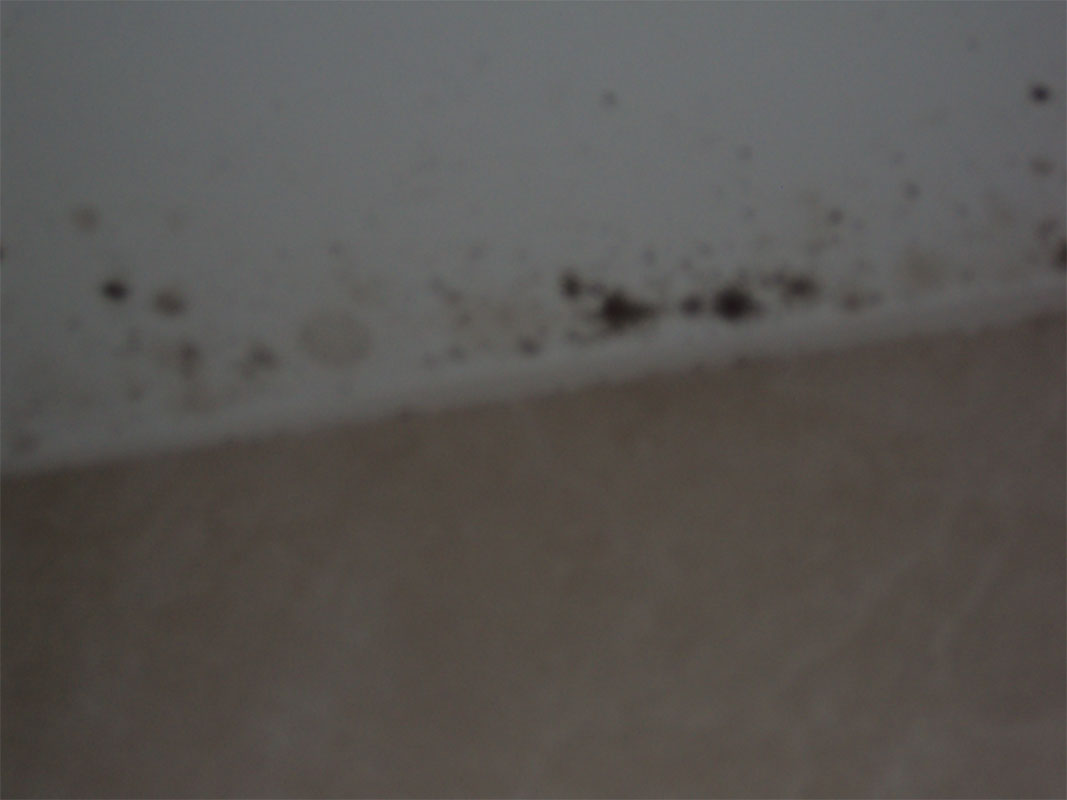

Mould buildup on ceiling due to condensation
Mould buildup on ceiling due to condensation

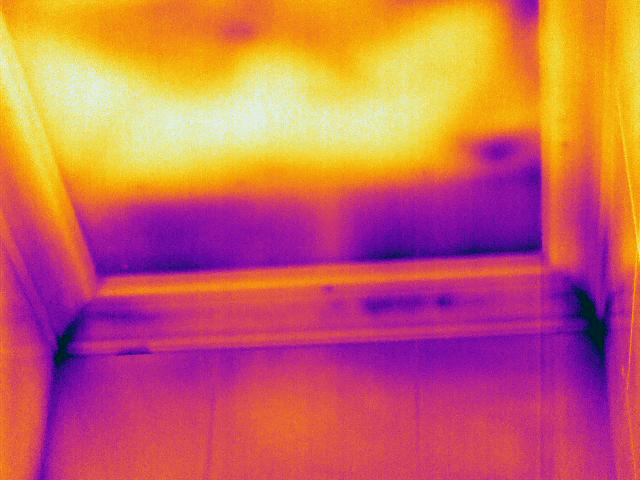

Thermal image of mould buildup on ceiling due to condensation
Thermal image of mould buildup on ceiling due to condensation
Condensation due to lack of ventilation
Condensation due to lack of ventilation

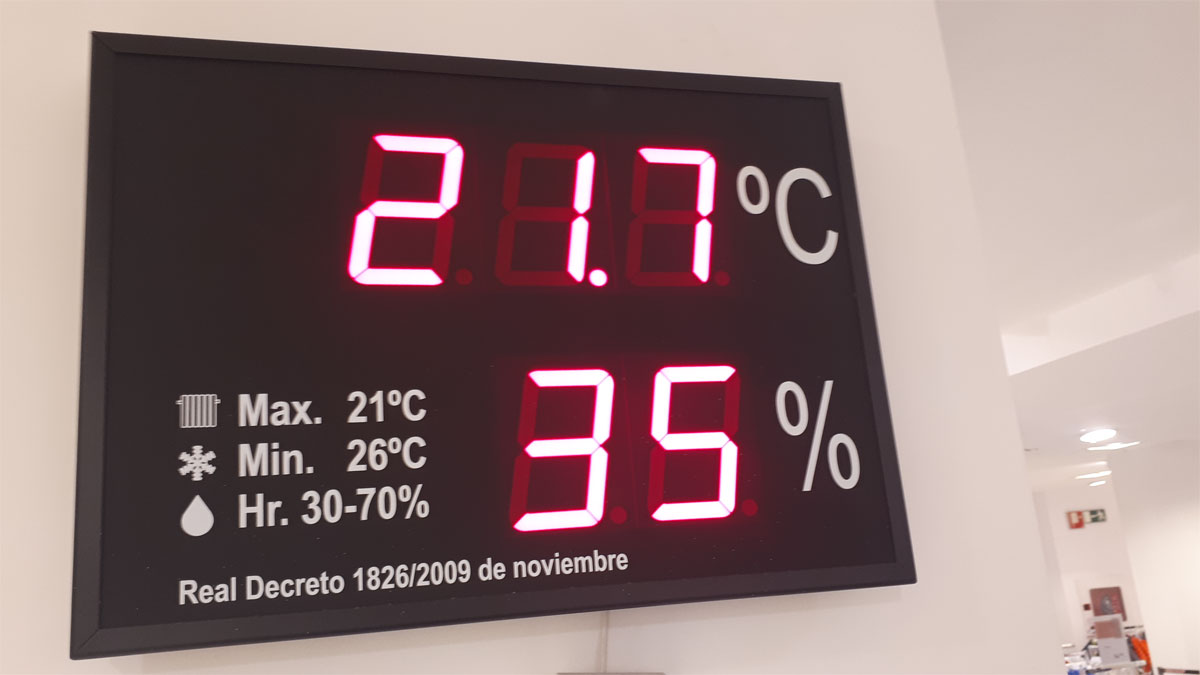

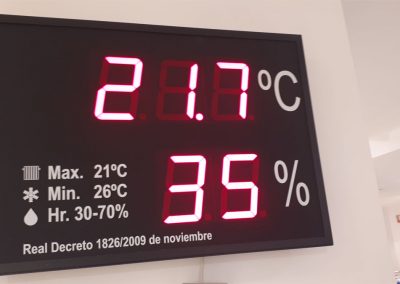

We live in a cold damp climate especially in winter unlike low humidity in Spain in February.
We live in a cold damp climate especially in winter unlike low humidity in Spain in February.
Solution – Heat Recovery Ventilation
HRV (Heat Recovery Ventilation) provides fresh air and improved climate control, while also saving energy by reducing the heating requirements
Drafts around Electrical & Building Services

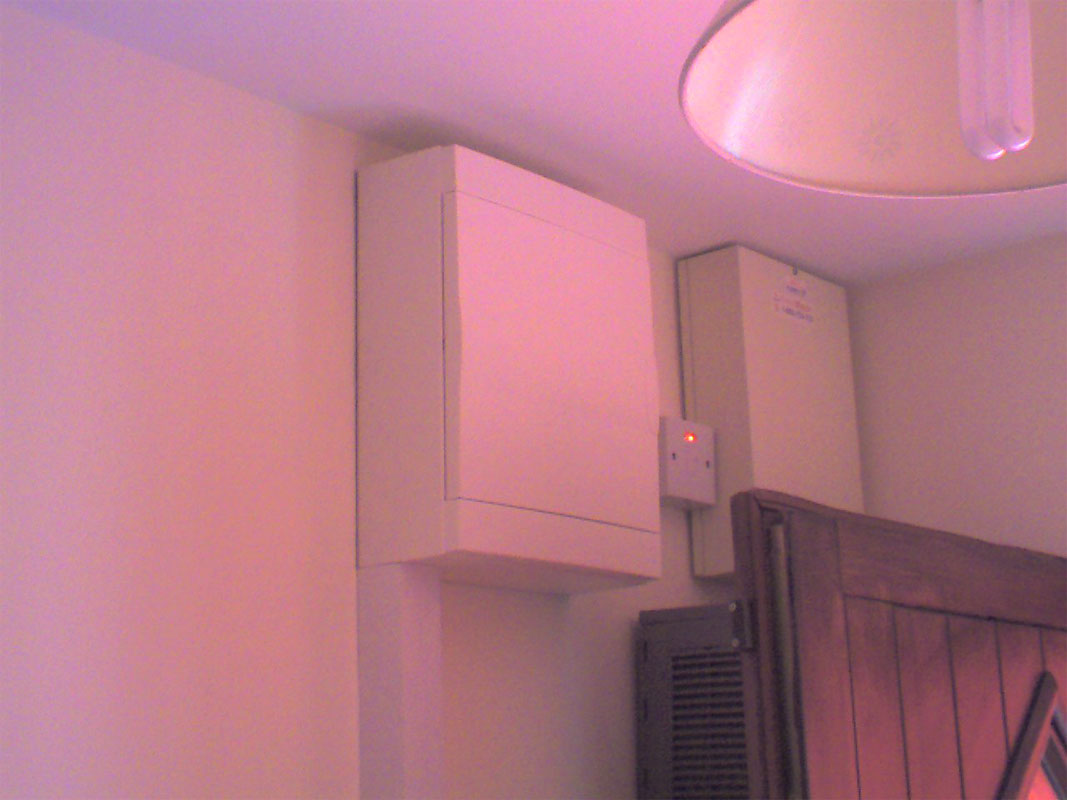

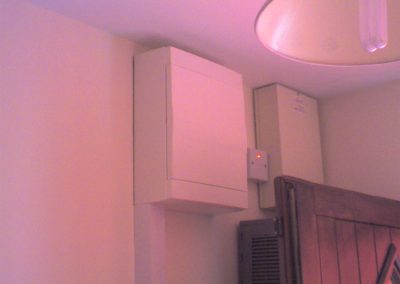

Drafts coming through fuseboard
Drafts coming through fuseboard

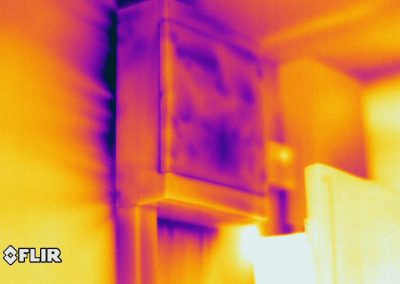

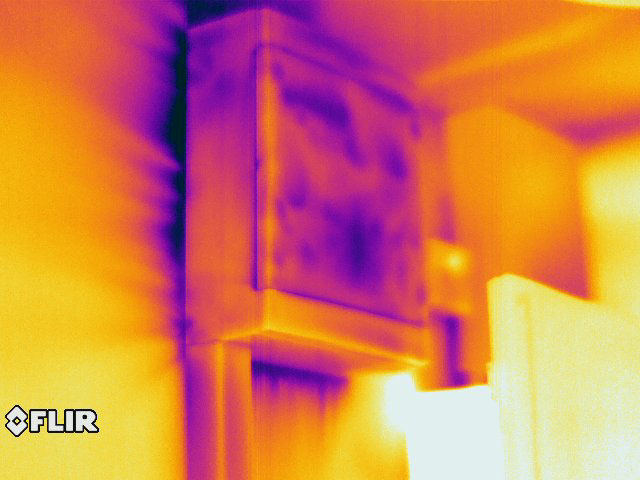

Thermal image of drafts coming through fuseboard
Thermal image of drafts coming through fuseboard

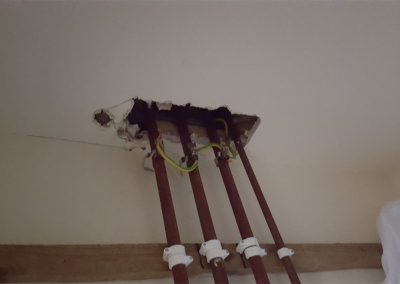

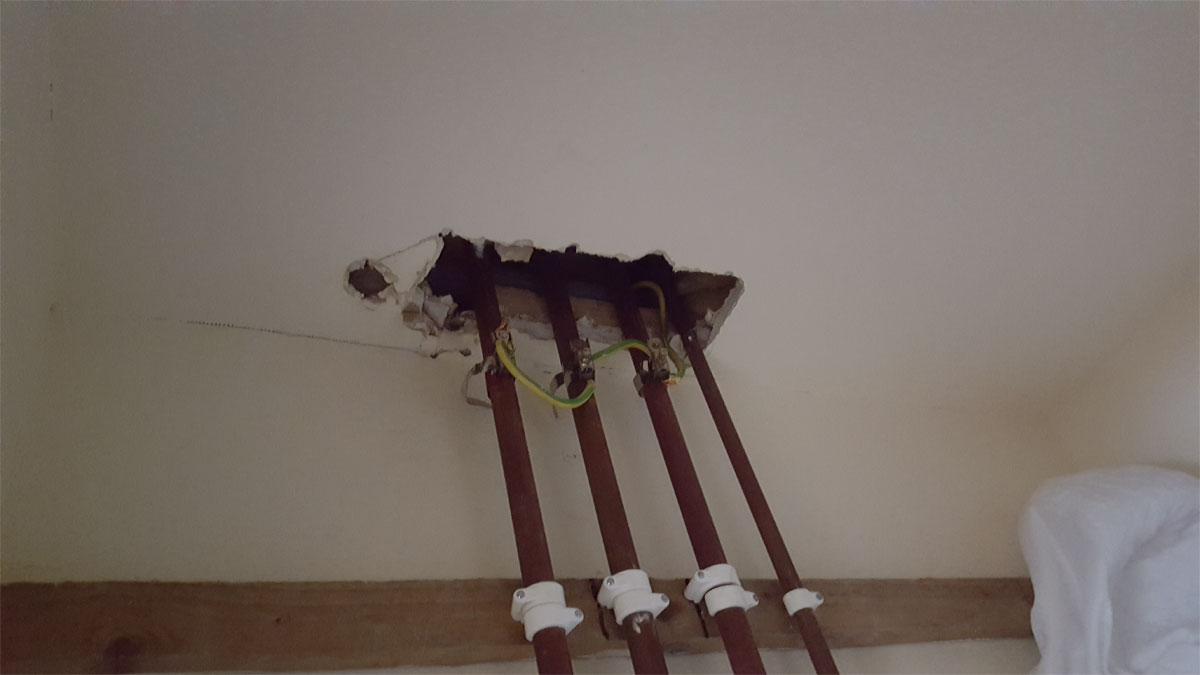

Draft through hole for pipes from attic to hotpress
Draft through hole for pipes from attic to hotpress

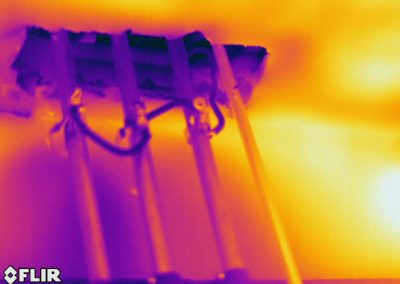

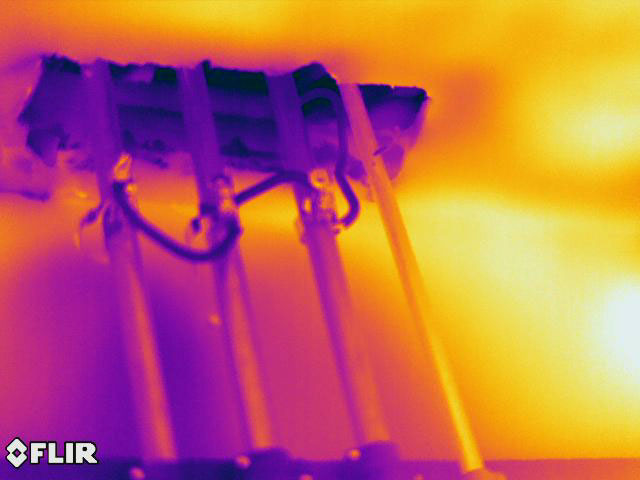

Thermal Image of draft through hole for pipes from attic to hotpress
Thermal Image of draft through hole for pipes from attic to hotpress

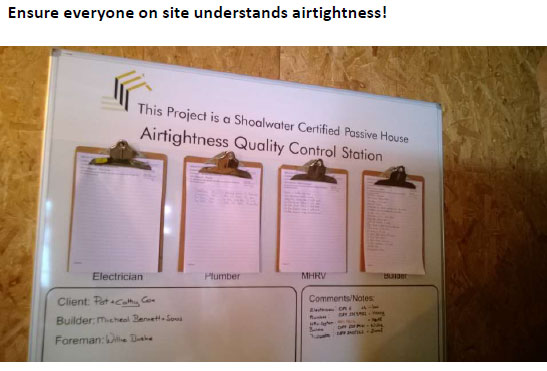

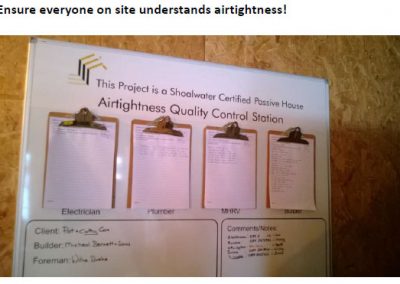

SOLUTION – Implement air tightness quality control measures
SOLUTION – Implement air tightness quality control measures

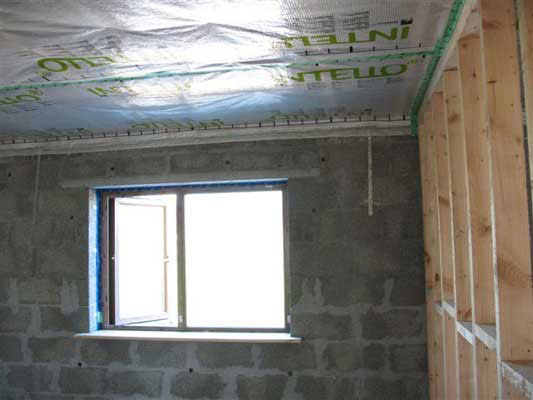

SOLUTION – Airtight membrane on ceiling
SOLUTION – Airtight membrane on ceiling

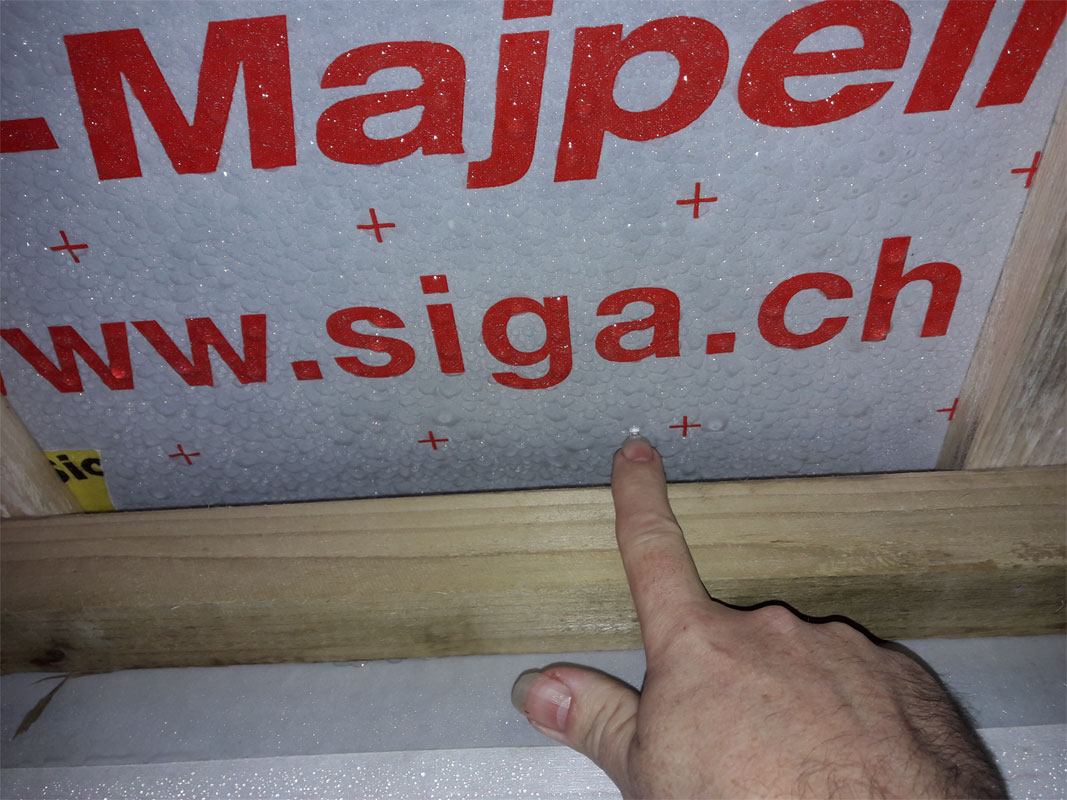

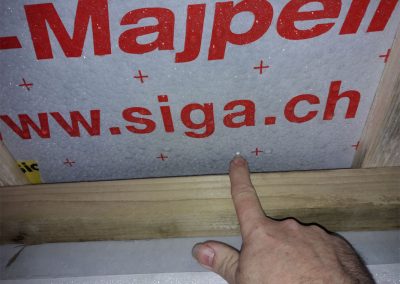

SOLUTION – Service hole in airtight membrane Implement air tightness quality control measures
SOLUTION – Service hole in airtight membrane Implement air tightness quality control measures

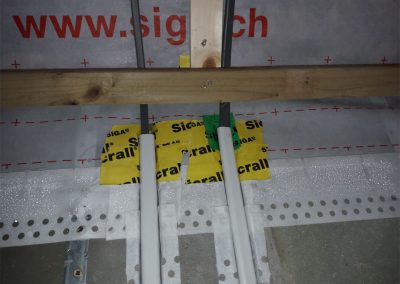

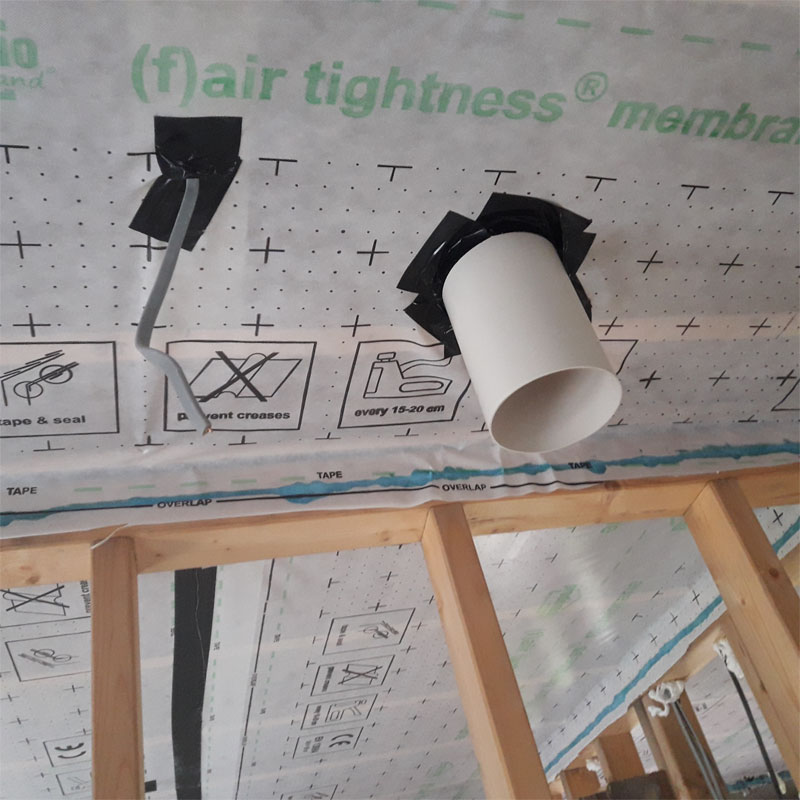

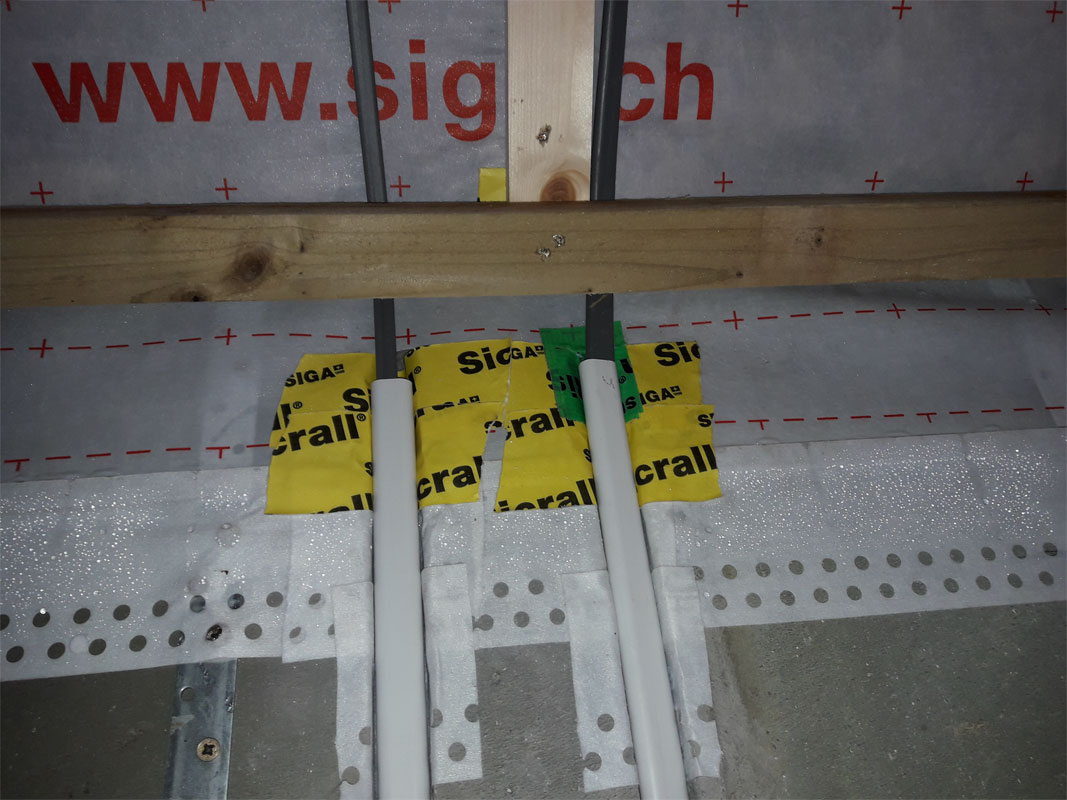

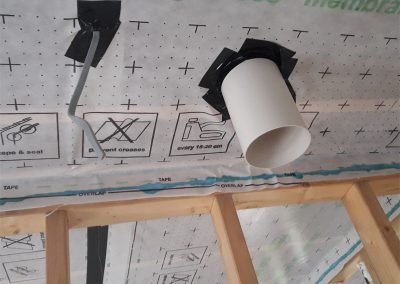

Duct & electrical services taped coming through airtightness membrane
Duct & electrical services taped coming through airtightness membrane

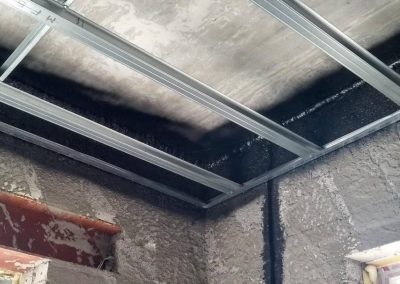

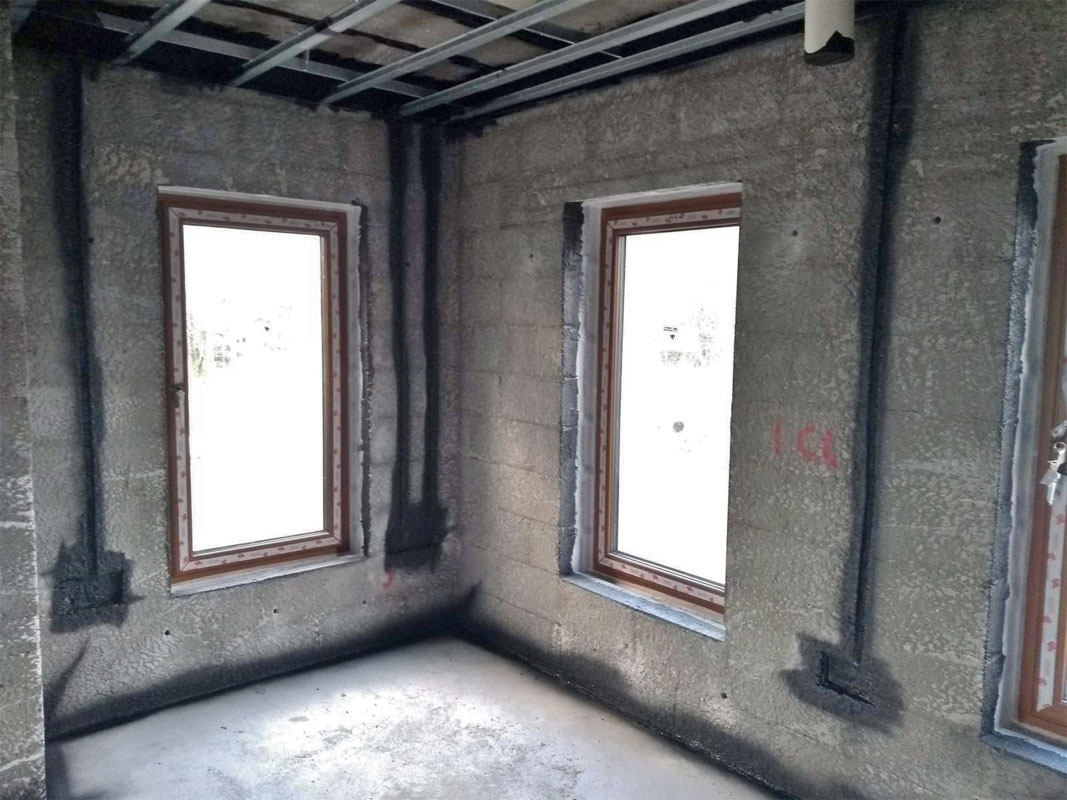

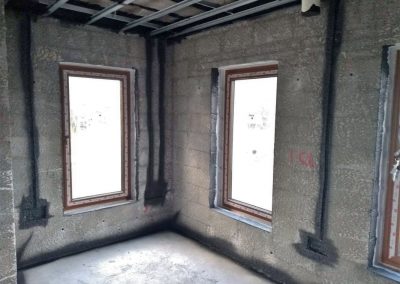

SOLUTION – Before installing metal ceiling use of air tight paint to seal Electrical chases & porous concrete blocks
SOLUTION – Before installing metal ceiling use of air tight paint to seal Electrical chases & porous concrete blocks

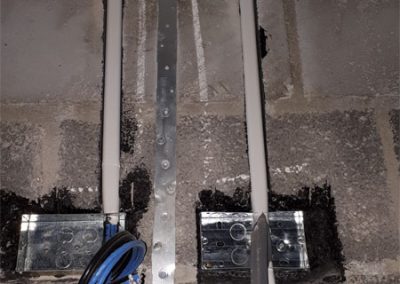

SOLUTION – Use of air tight paints behind Electrical chases & above metal ceiling
SOLUTION – Use of air tight paints behind Electrical chases & above metal ceilings.

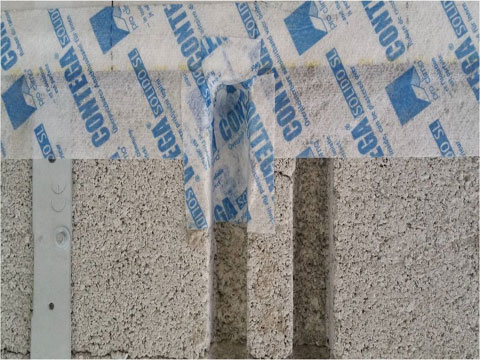

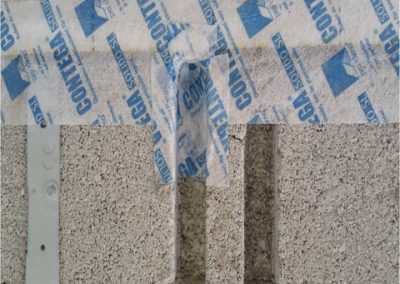

SOLUTION – Airtight membrane tapes to wall
SOLUTION – Airtight membrane tapes to wall
SOLUTION – Airtight membrane tapes around electrical services
SOLUTION – Airtight membrane tapes around electrical services
SOLUTION – Airtight Paint to seal porous Concrete block with air tight membrane & tapes around electrical services
SOLUTION – Airtight Paint to seal porous Concrete block with air tight membrane & tapes around electrical services

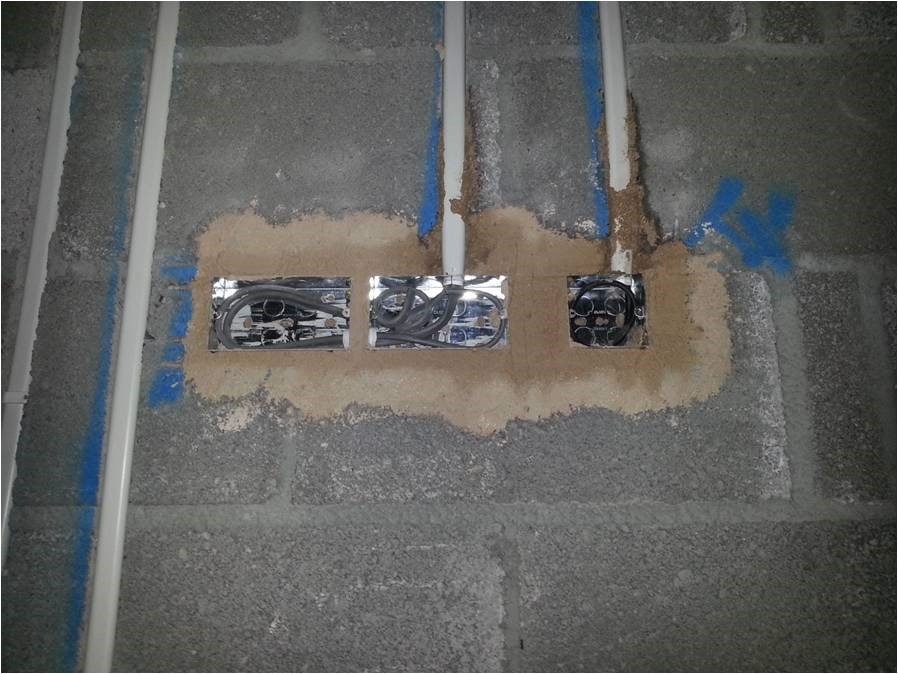

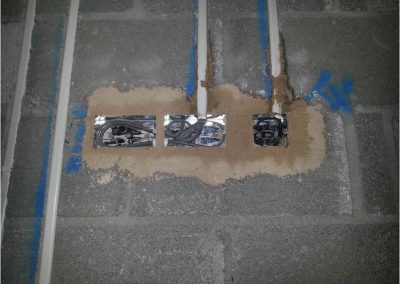

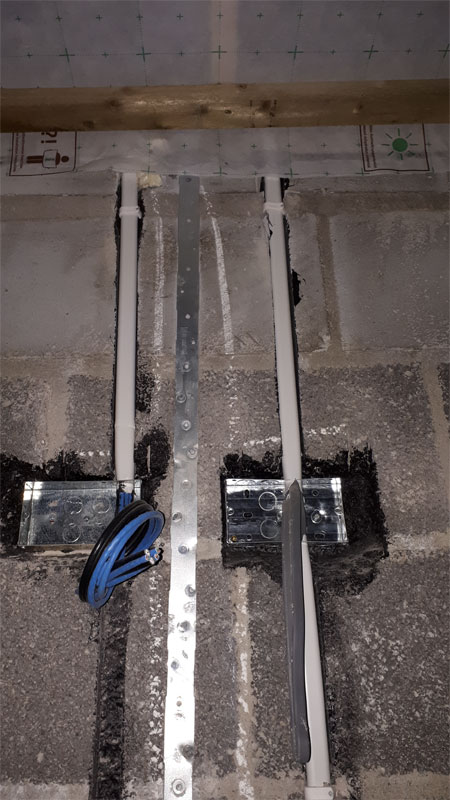

sockeSOLUTION – Use of sand & cement to seal pouris conctete blocks behind electrical services
SOLUTION – Use of sand & cement to seal pouris conctete blocks behind electrical services
Drafts around Windows

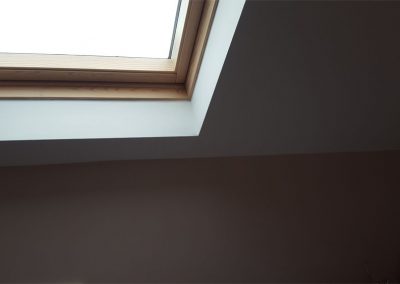

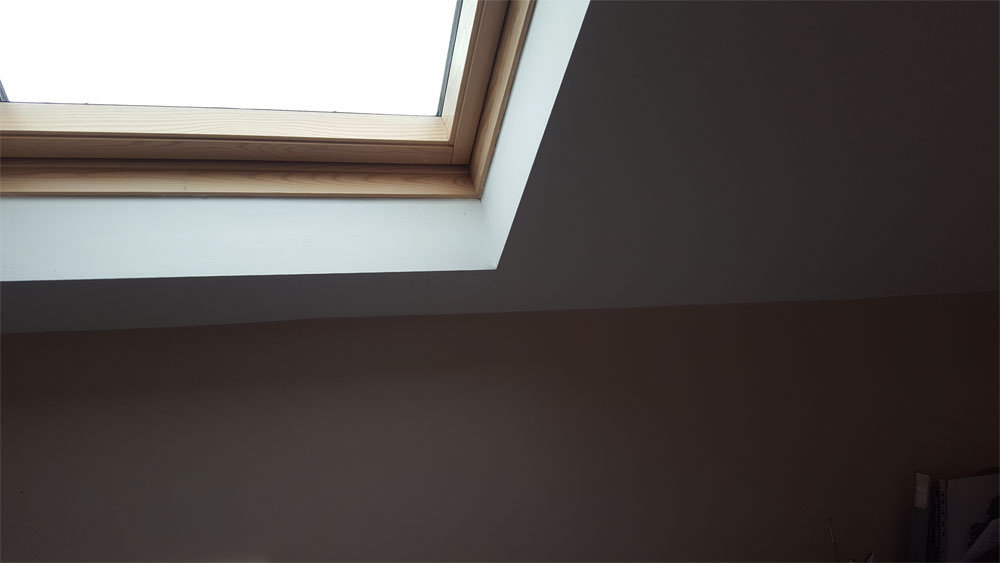

Draft around dormer window
Draft around dormer window

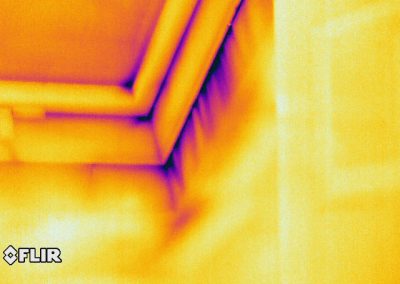

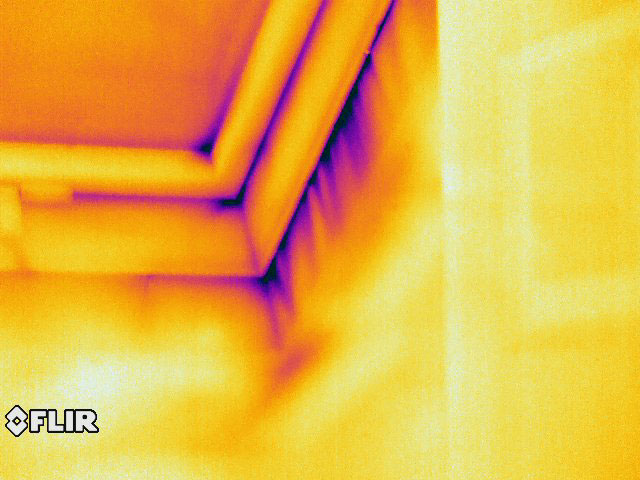

Thermal image of draft around dormer window
Thermal image of draft around dormer window

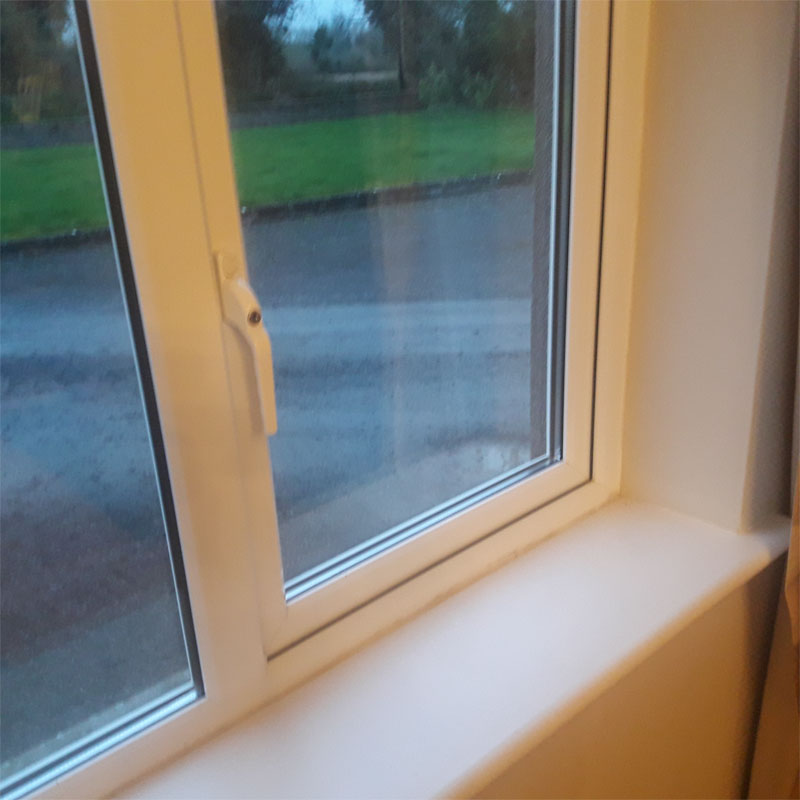

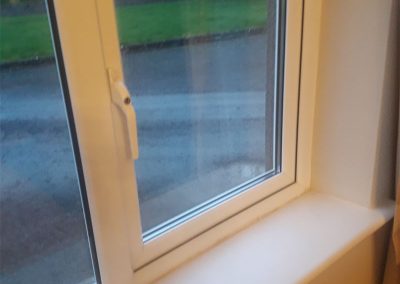

Draft around window
Draft around window

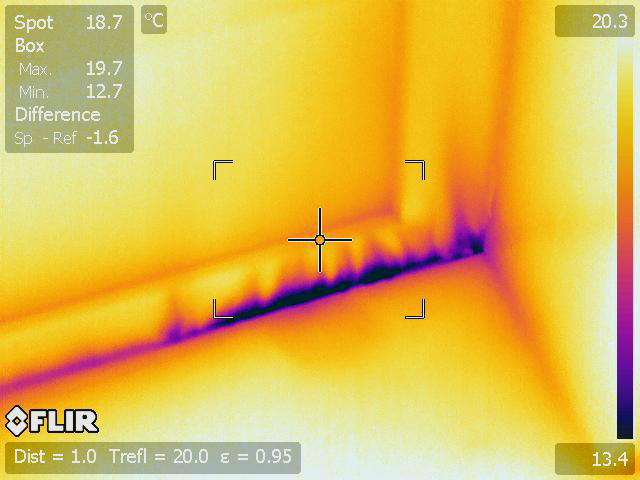

Thermal image of draft around window
Thermal image of draft around window

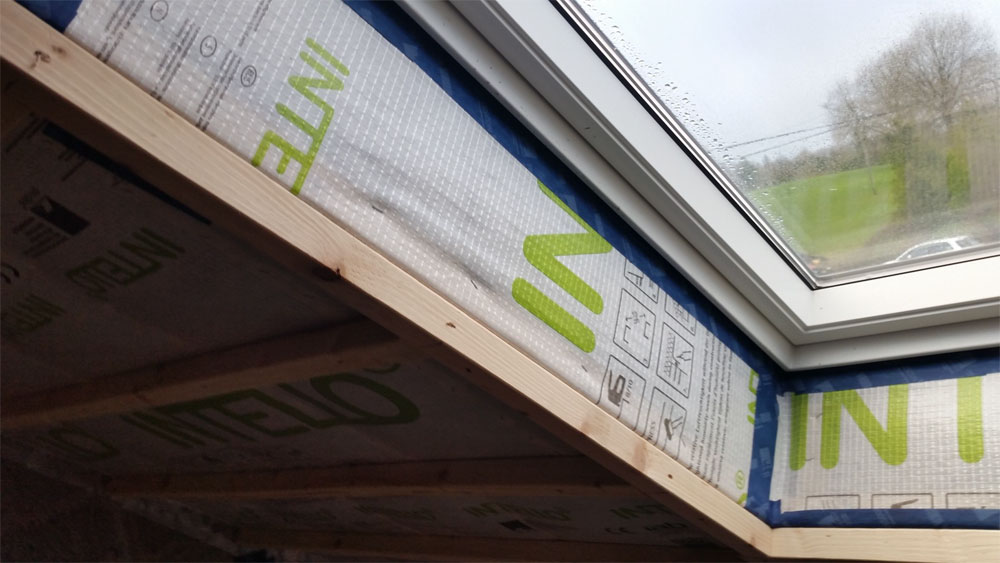

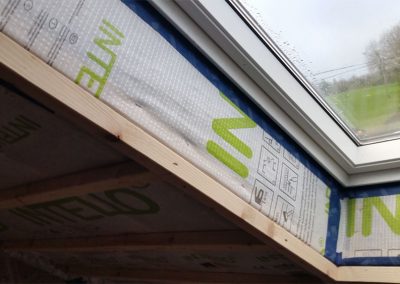

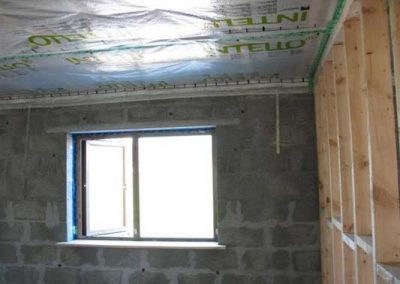

SOLUTION – Air tightness membrane around dormer window.
SOLUTION – Air tightness membrane around dormer window.

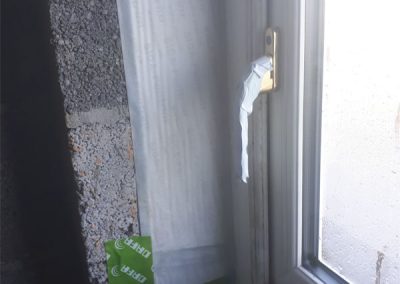

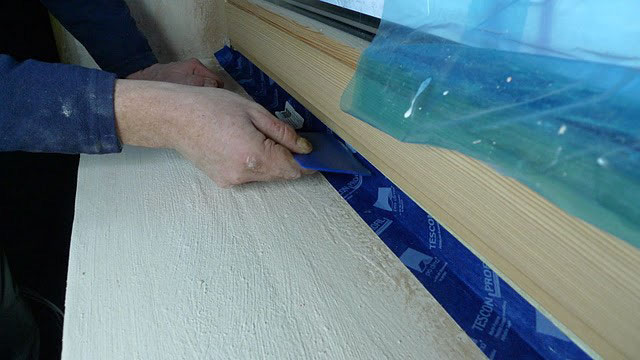

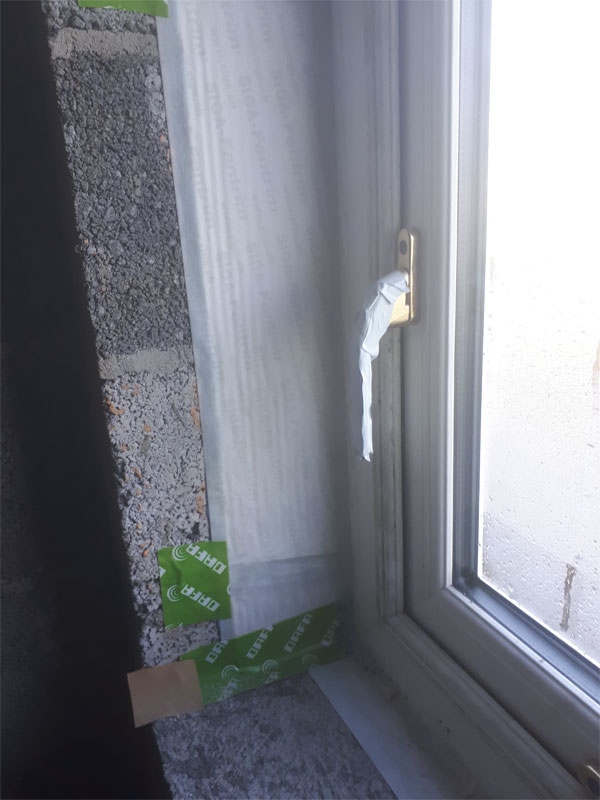

SOLUTION – Installing air tightness tape around window
SOLUTION – Installing air tightness tape around window
SOLUTION – Installing air tightness tape around window
SOLUTION – Installing air tightness tape around window

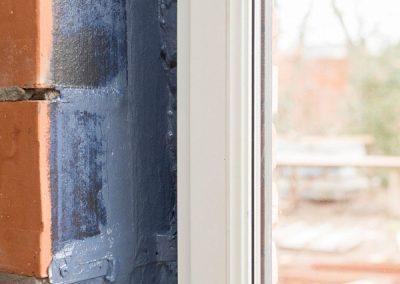

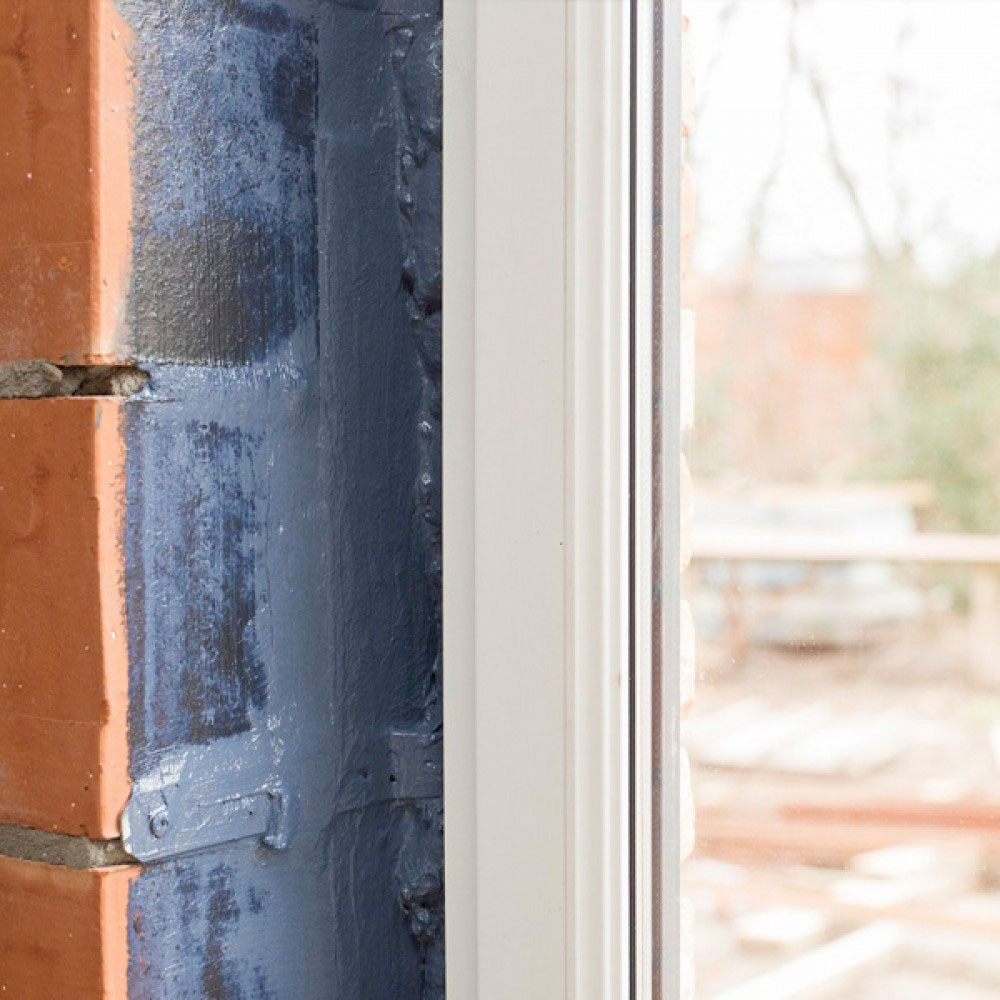

SOLUTION – Air tightness paint around window
SOLUTION – Air tightness paint around window

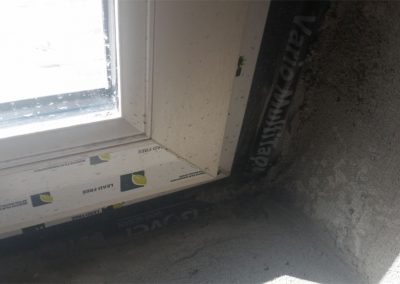

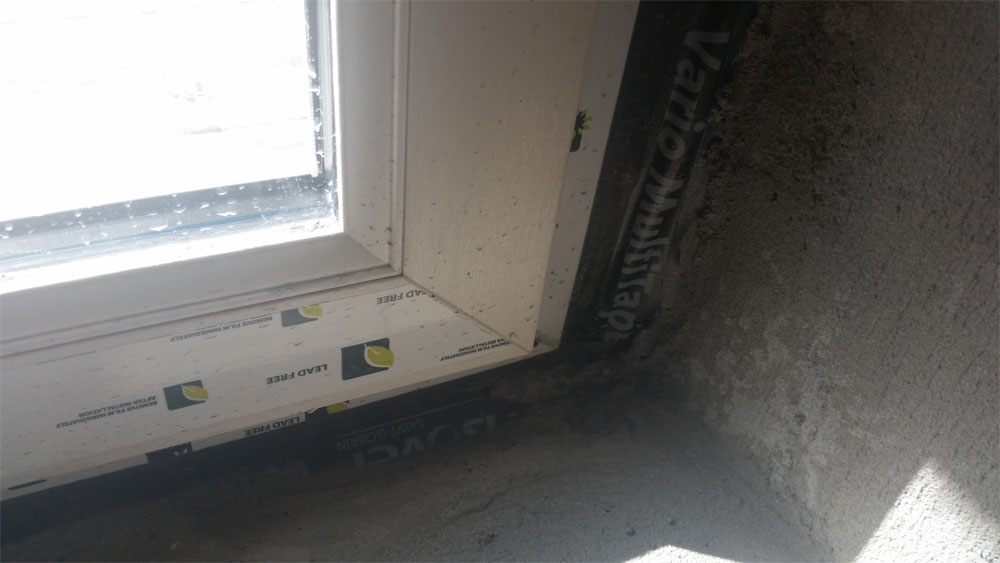

SOLUTION – Air tightness tape and sand & cement around window
SOLUTION – Air tightness tape and sand & cement around window
SOLUTION – Air tightness tape around window and sand & cement scratch coat ready for cosy board
SOLTUTION – Air tightness tape around window and sand & cement scratch coat ready for cosy board
Drafts coming through dormer ceiling

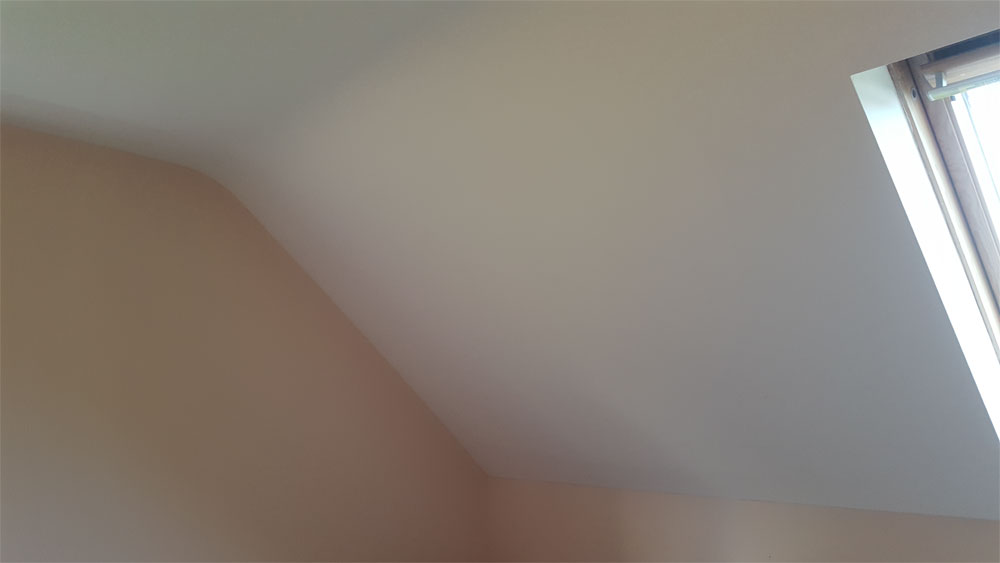

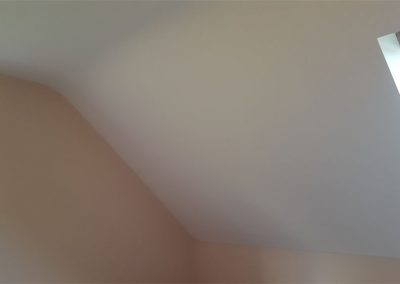

Drafts comming through dormer ceiling
Drafts comming through dormer ceiling

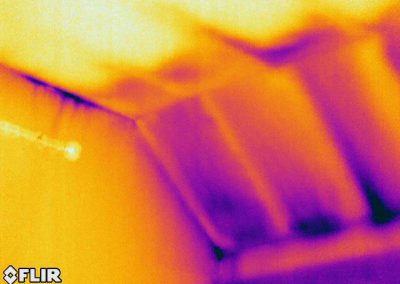

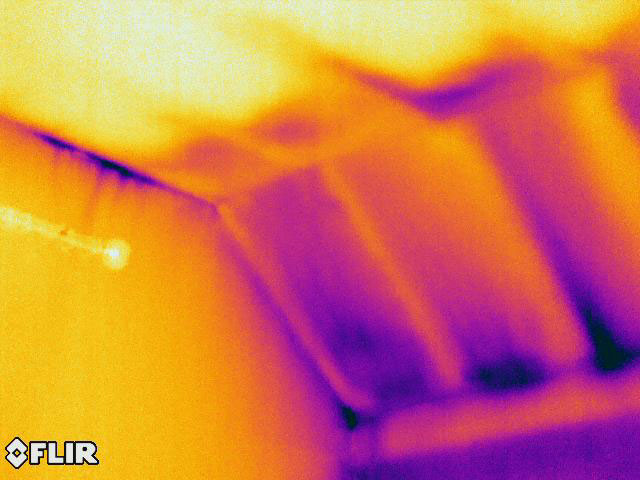

Thermal image of drafts coming through dormer ceiling
Thermal image of drafts coming through dormer ceiling

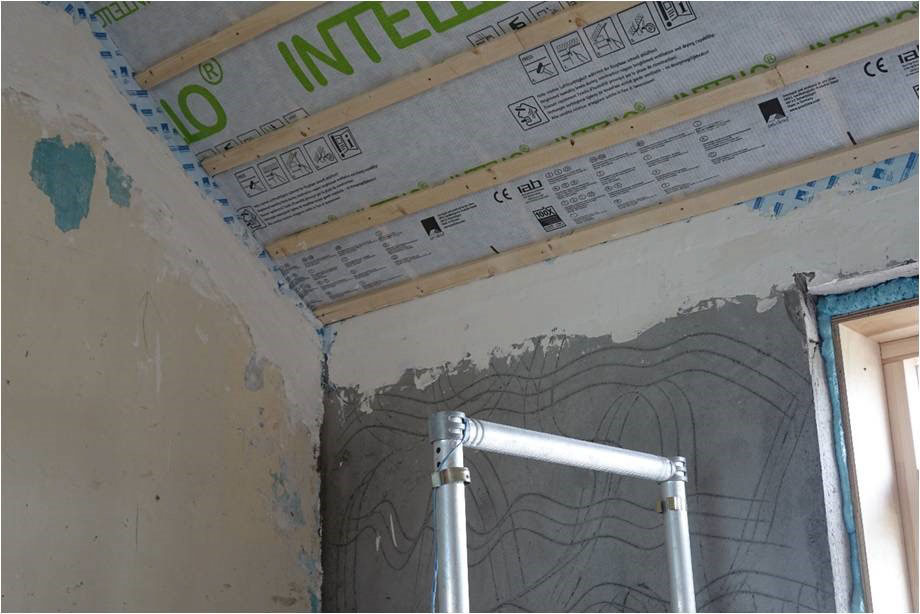

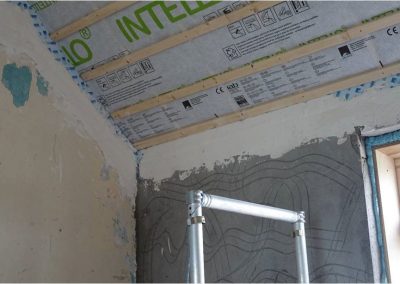

SOLUTION – Air tightness tapes and membranes installed at construction stage
SOLUTION – Air tightness tapes and membranes installed at construction stage

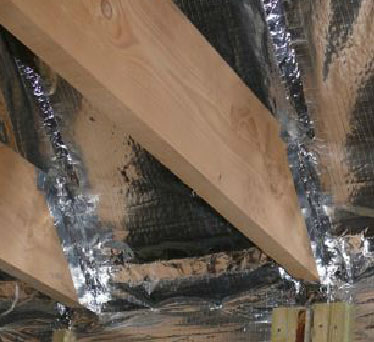

Solution – Superquilt
Solution – Superquilt

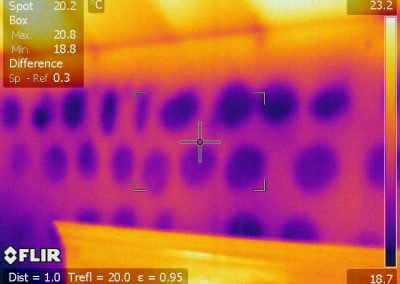

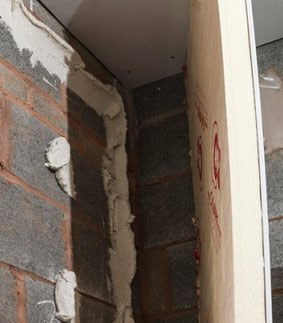

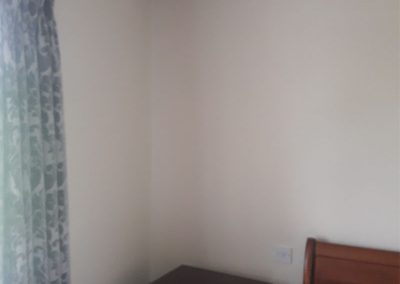

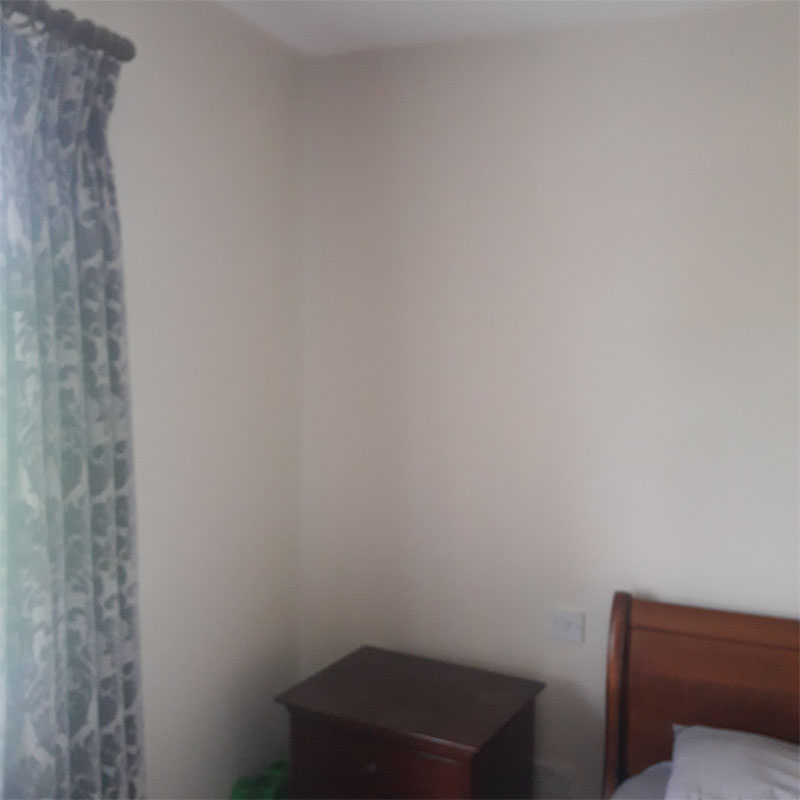

Cold Bridging Dot and Dab plasterboard adhesive
Cold Bridging Dot and Dab plasterboard adhesive
Cold Bridging Dot and Dab plasterboard adhesive

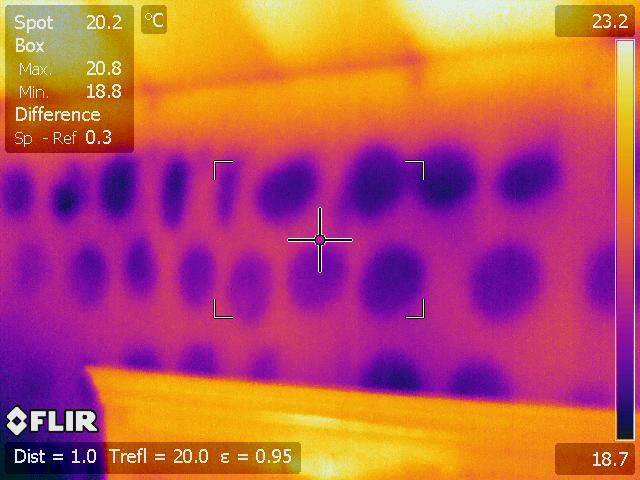

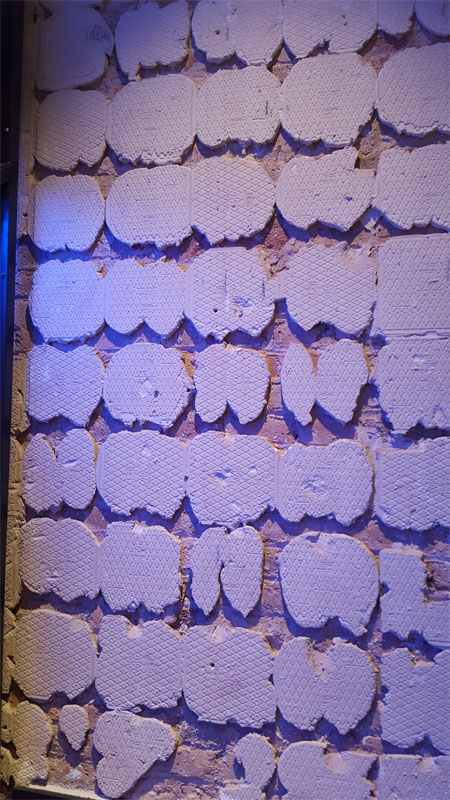

Cold bridging dot & dab plasterboard adhesive
Cold bridging dot & dab plasterboard adhesive

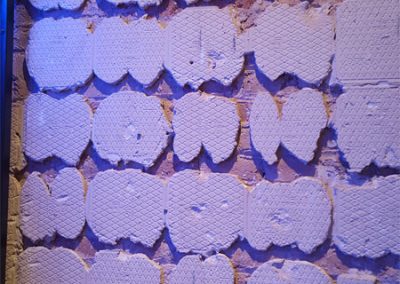

dotplaster-adhesive
Cold bridging dot & dab plasterboard adhesive
Cold bridging pouris cement blocks and dot & dab plasterboard adhesive
Cold bridging pouris cement blocks and dot & dab plasterboard adhesive

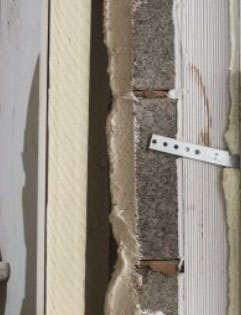

Cold bridging window issues Pouris cement blocks and dot & dab plasterboard adhesive
Cold bridging window issues Pouris cement blocks and dot & dab plasterboard adhesive

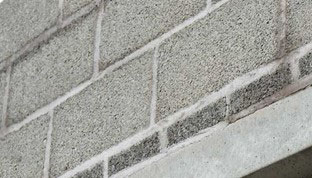

Concrete blocks are porous- sand and cement render helps to make air tight
Concrete blocks are porous- sand and cement render helps to make air tight
SOLUTION – Air tightness tape around window and sand & cement scratch coat ready for cosy board
SOLTUTION – Air tightness tape around window and sand & cement scratch coat ready for cosy board
Porous Concrete Blocks
Concrete blocks are porous and allow cold air into your home and warm air out. Click to watch a video on airtightness from the Passive House Academy
Drafts coming in around joists from outside via cavity

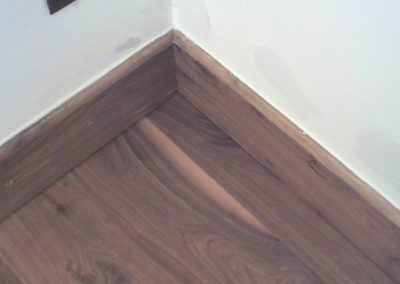

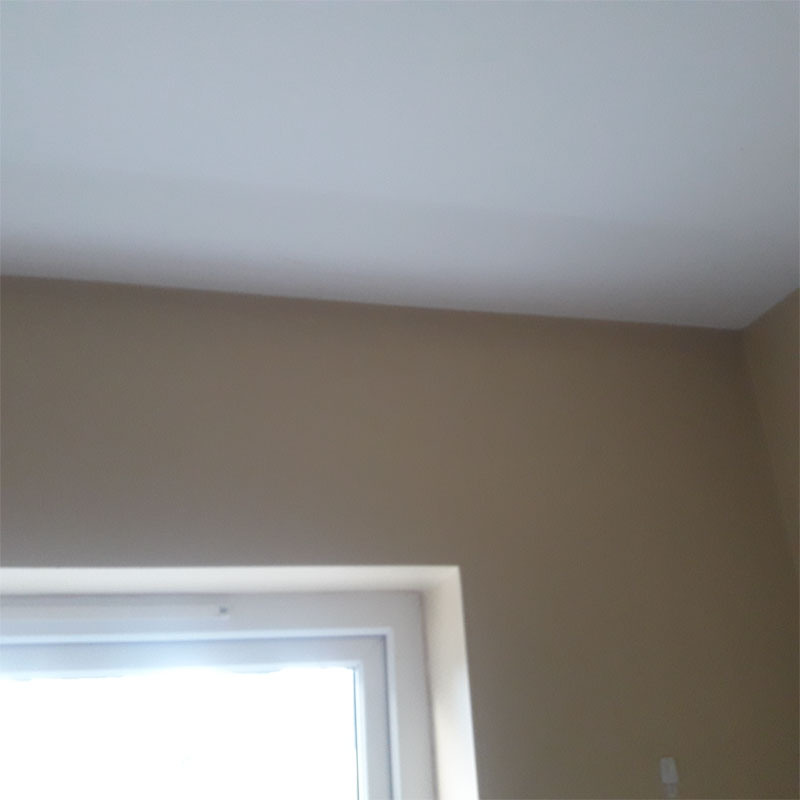

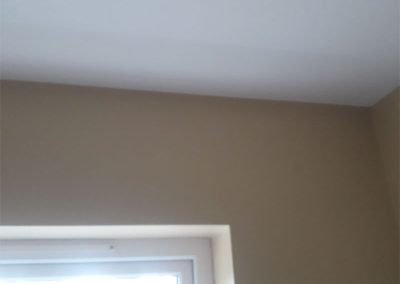

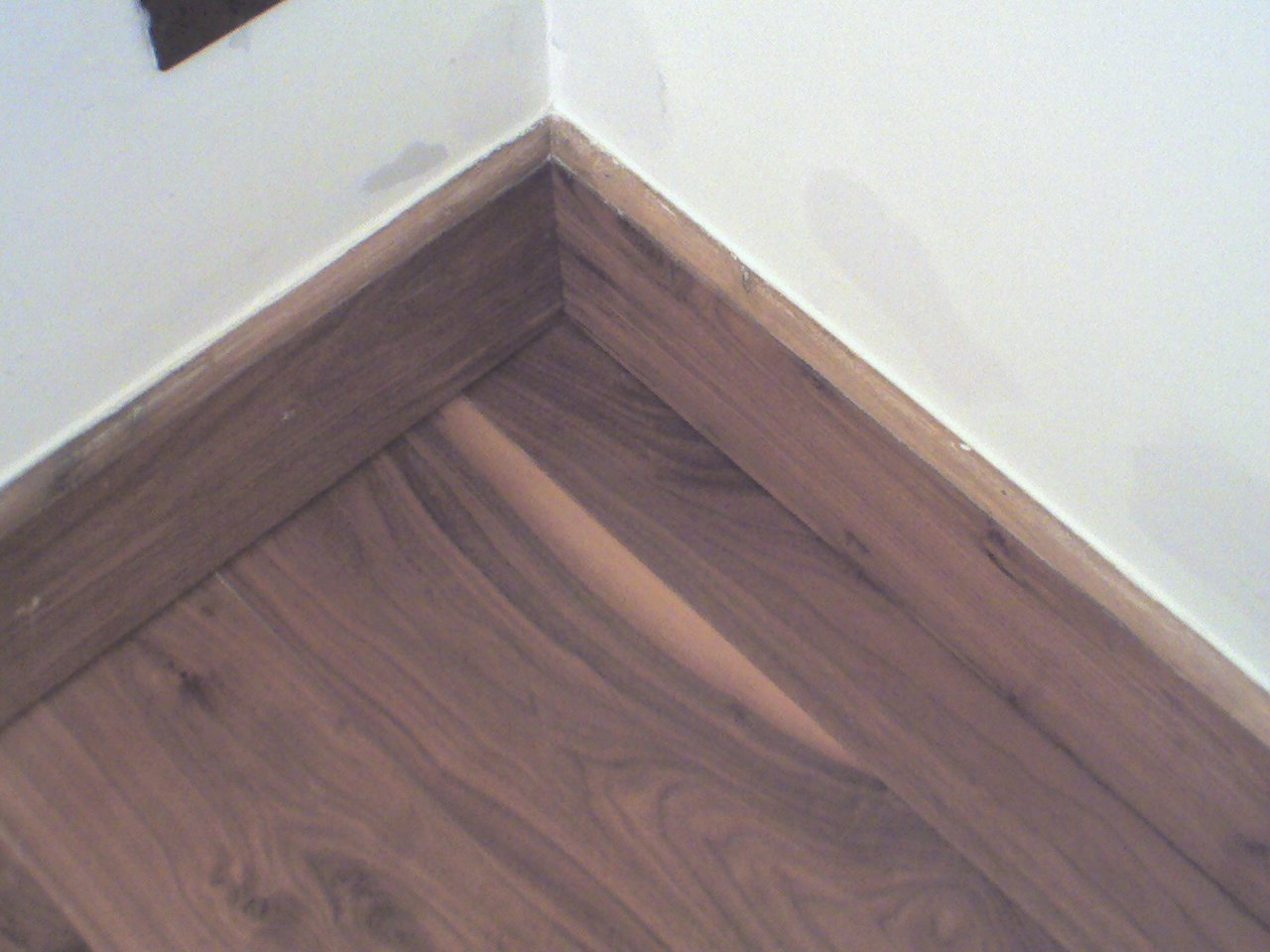

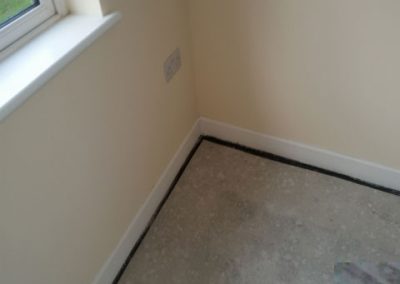

Drafts coming in upstairs through skirting board via joists between ground floor & upstairs from outside via cavity
Drafts coming in upstairs through skirting board via joists between ground floor & upstairs from outside via cavity

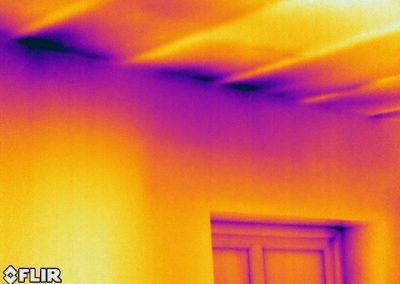

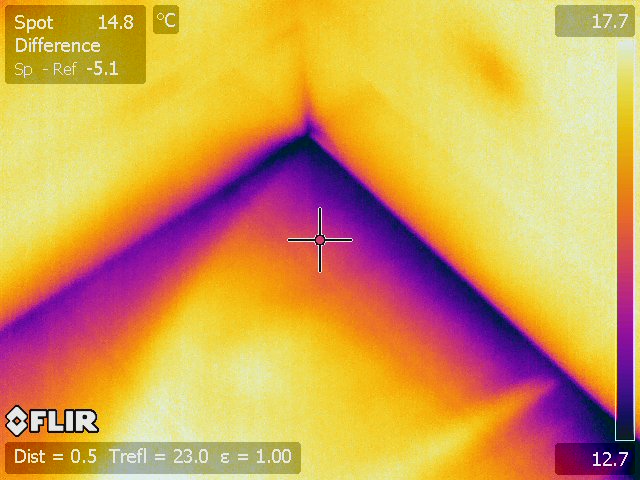

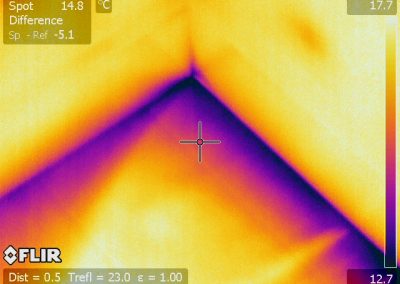

Thermal image of drafts coming in upstairs through skirting board via joists between ground floor & upstairs from outside via cavity
Thermal image of drafts coming in upstairs through skirting board via joists between ground floor & upstairs from outside via cavity

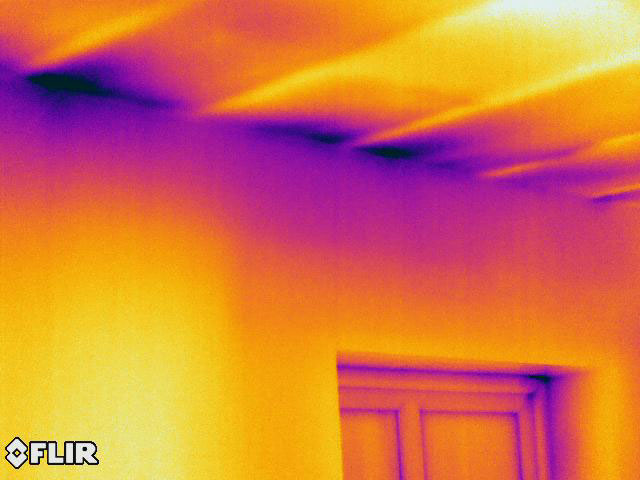

Thermal Image of drafts comming in downstairs aroung joists between ground floor & upstairs from outside via cavity.jpg
Thermal Image of drafts comming in downstairs aroung joists between ground floor & upstairs from outside via cavity.jpg
joists-ir

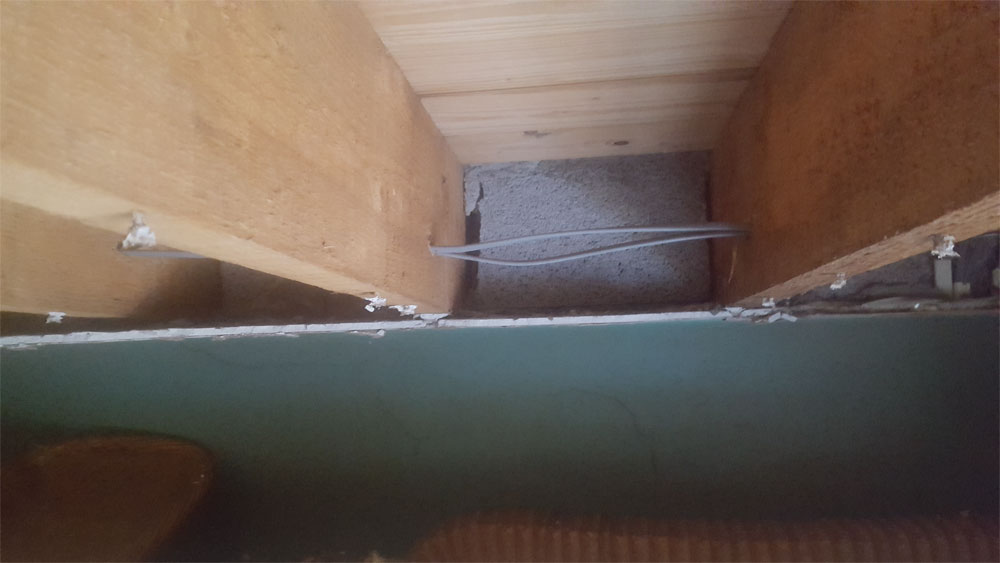

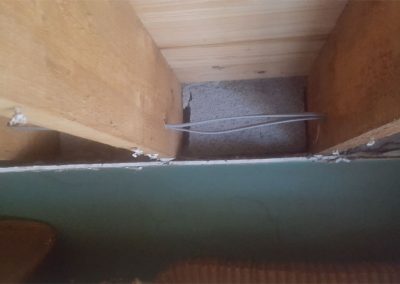

ceiling removed

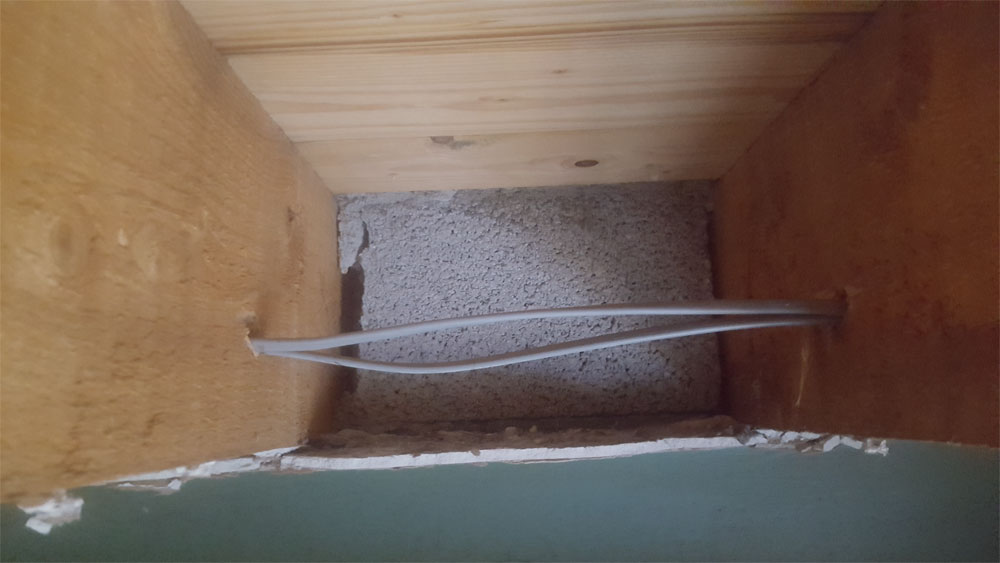

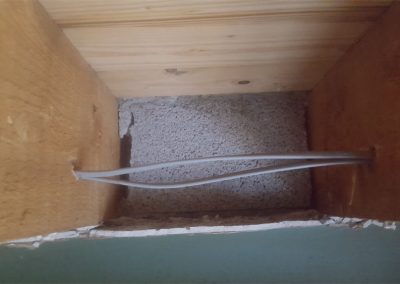

Ceiling removed showing route of drafts comming in around joists between groung floor & upstairs from outside via cavity
Close up see gap between joists allowing drafts through from cavity
Close up see gap between joists allowing drafts through from cavity
Concrete blocks are porous- sand and cement render helps to make air tight
Concrete blocks are porous- sand and cement render helps to make air tight

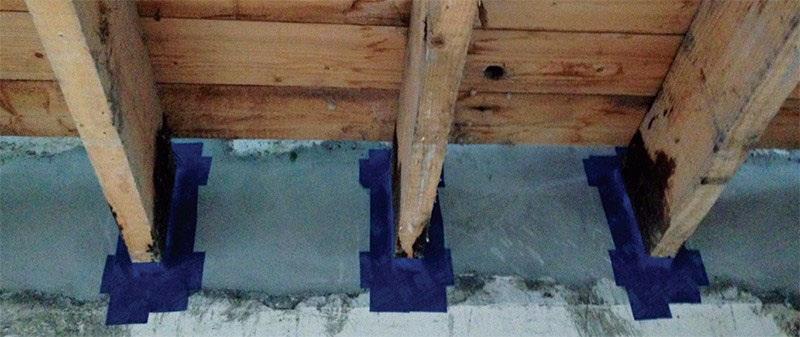

SOLUTION – use of sand & cement and air tightness tapes to stop drafts comming in around joists from outside via cavity
SOLUTION – use of sand & cement and air tightness tapes to stop drafts comming in around joists from outside via cavity

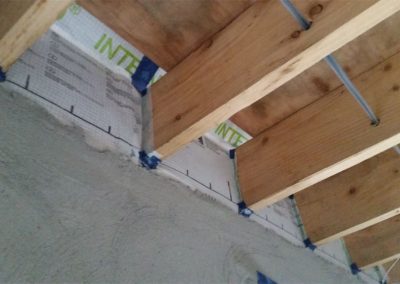

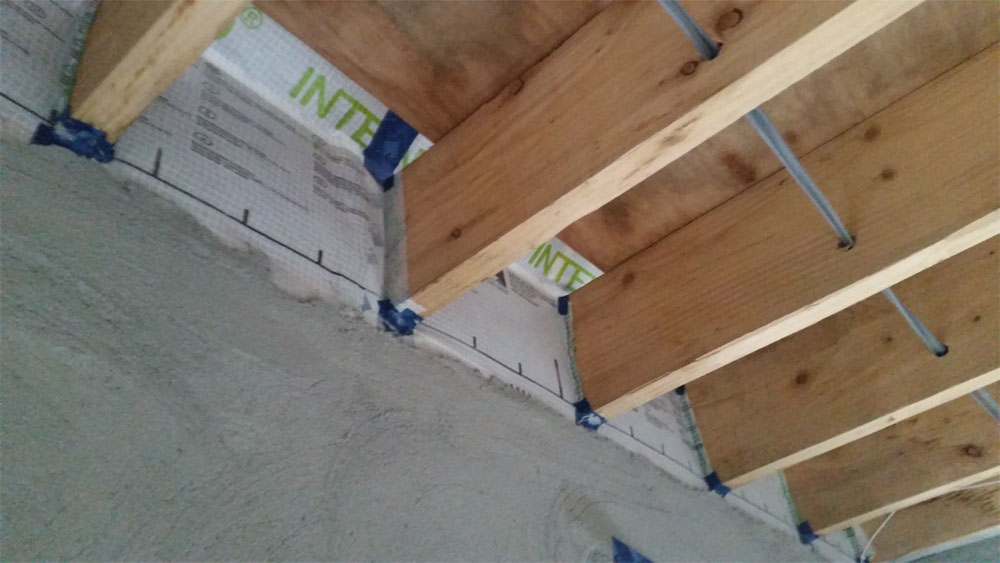

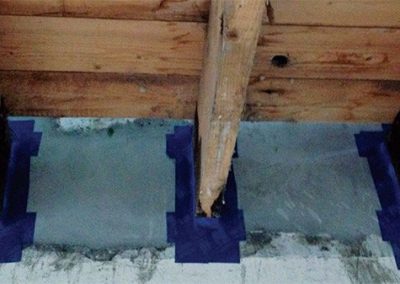

SOLUTION – Use of air tightness membrane & tapes to stop drafts coming in around joists from outside via cavity
SOLUTION – Use of air tightness membrane & tapes to stop drafts coming in around joists from outside via cavity

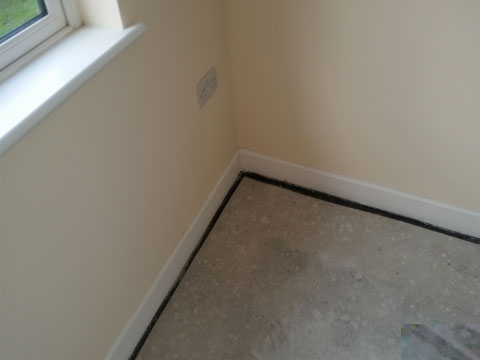

SOLUTION – Upstairs use of air tightness membrane & tapes to stop drafts comming in around joists from outside via cavity
SOLUTION – Upstairs use of air tightness membrane & tapes to stop drafts comming in around joists from outside via cavity
Cold Bridging and Drafts through Hollow Core

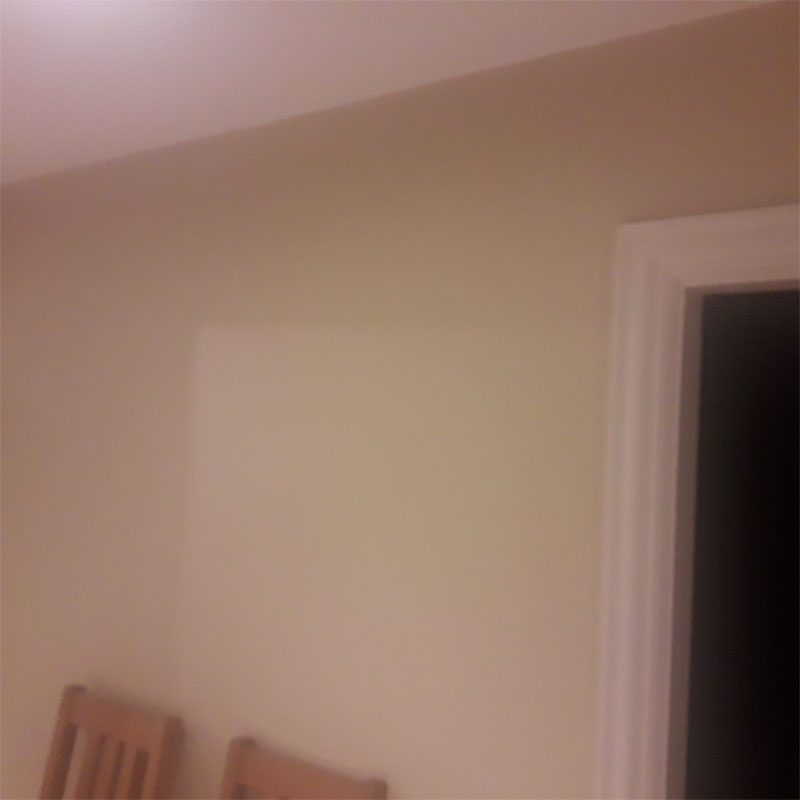

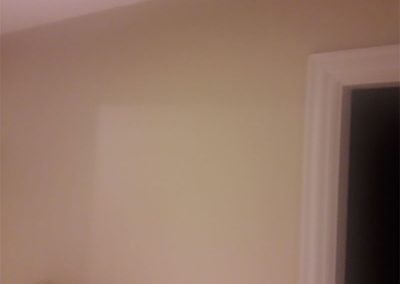

Cold bridging & draft through hollow core
Cold bridging & draft through hollow core

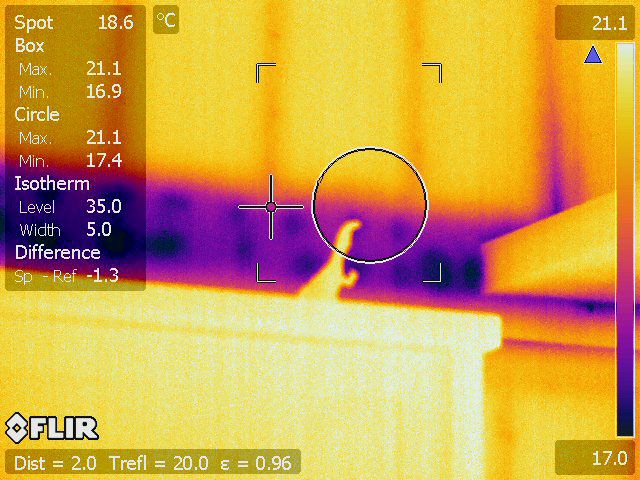

Thermal Image of cold bridging & draft through hollow core
Thermal Image of cold bridging & draft through hollow core

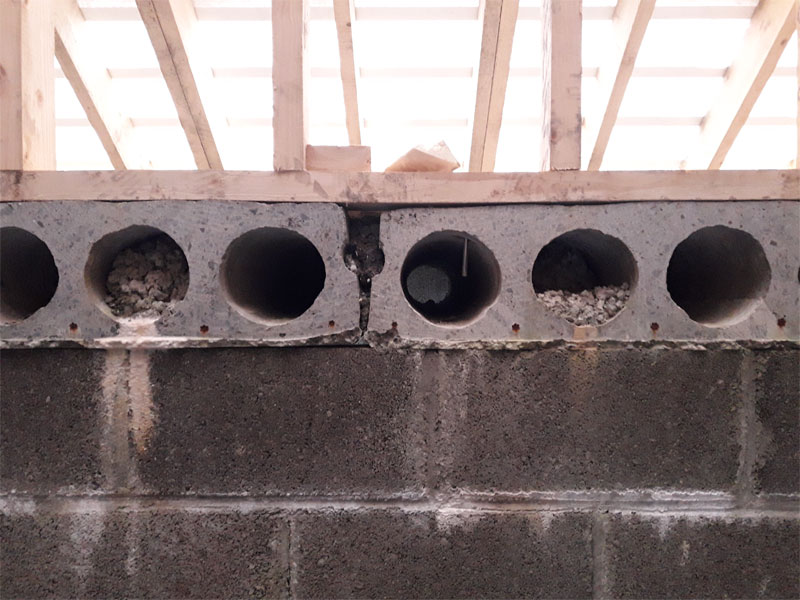

At construction stage how cold Bridging & draft come through hollow core floor
At construction stage how cold Bridging & draft come through hollow core floor

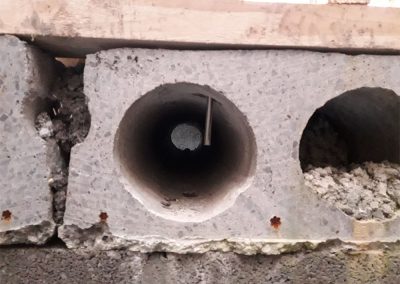

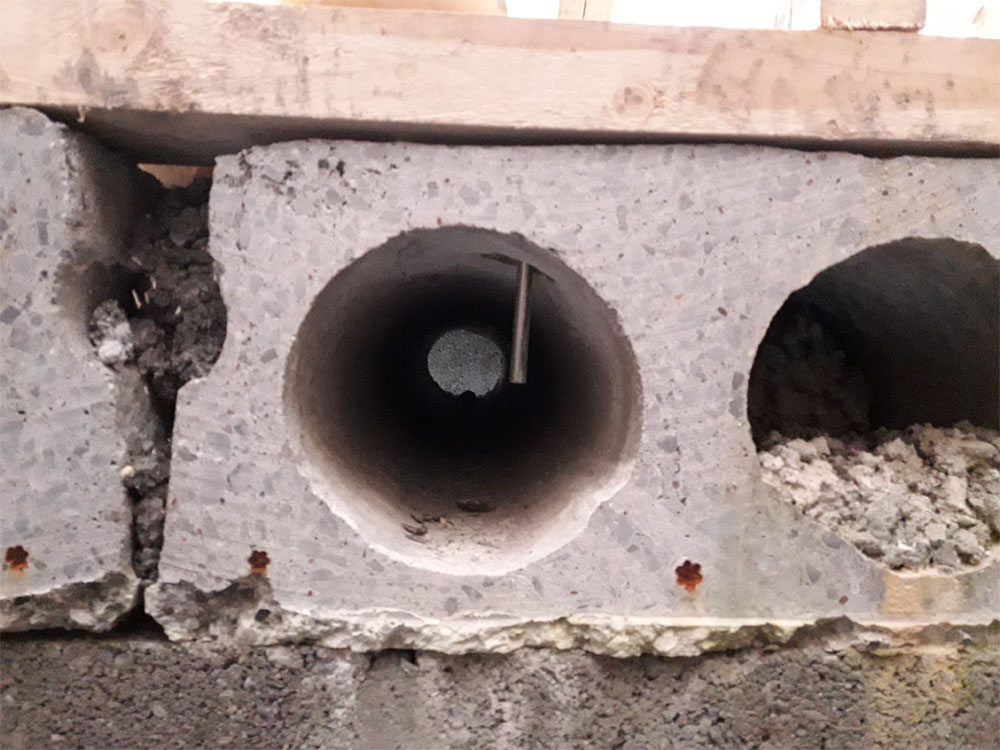

Close up of how cold bridging & draft through hollow core floor – see through to cavity
Close up of how cold bridging & draft through hollow core floor – see through to cavity

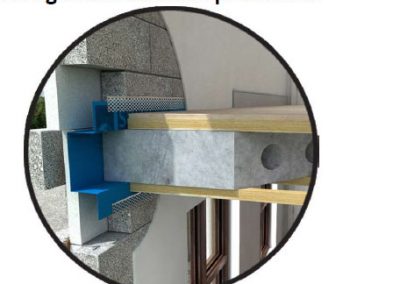

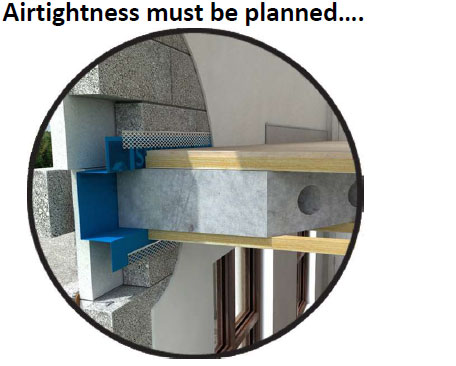

SOLUTION – Wrap hollow core floor with air tightness nembrane at construction stage
SOLUTION – Wrap hollow core floor with air tightness nembrane at construction stage

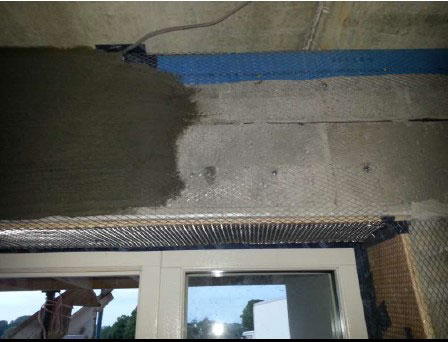

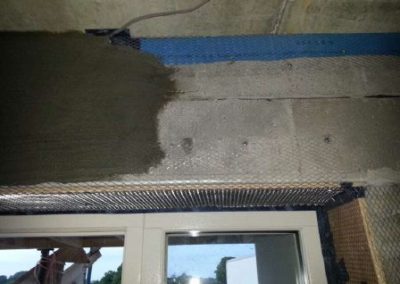

SOLUTION – Sand & cement up to air tightness nembrane at construction stage
SOLUTION – Sand & cement up to air tightness nembrane at construction stage

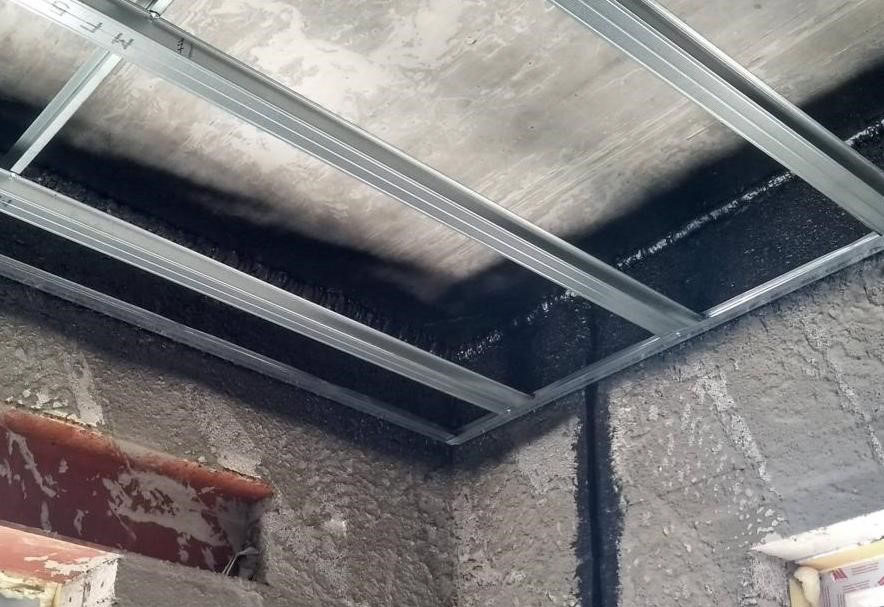

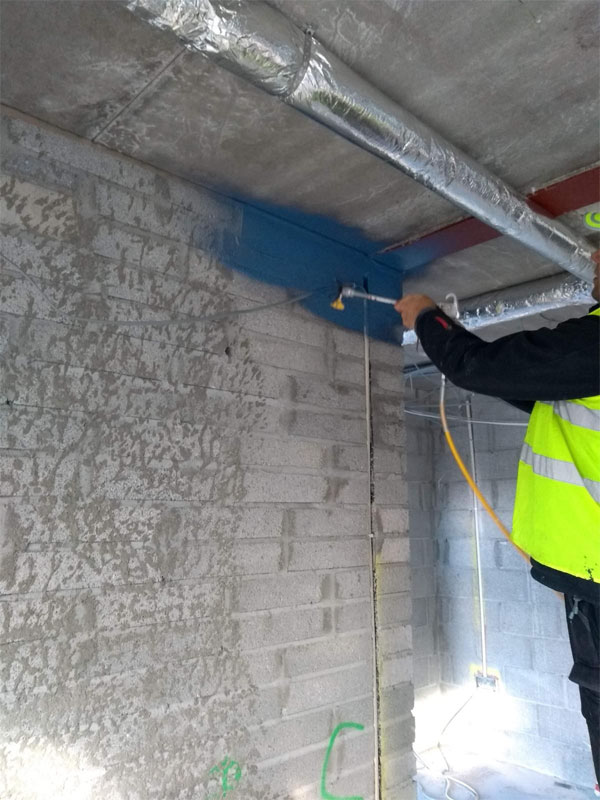

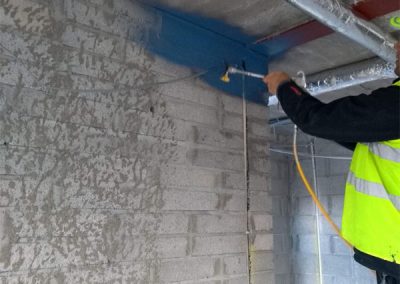

SOLUTION – Applying air tightness paint to seal pouris concrete blocks before installing metal ceiling
SOLUTION – Applying air tightness paint to seal pouris concrete blocks before installing metal ceiling
SOLUTION – Before installing metal ceiling use of air tight paint to seal Electrical chases & porous concrete blocks
SOLUTION – Before installing metal ceiling use of air tight paint to seal Electrical chases & porous concrete blocks
